Carteck 40mm Luxe Georgian (4 Wood Finish Options) garage door Steel Carteck

The Carteck Centre side hinged door is available in either Asymmetric split opening or 50/50 split.

The Carteck side hinged doors are built with 40mm thick interlocking panels that insulate and reduce sound transmission.

Carteck side hinged doors are built using the tried and tested panel strength of the very popular insulated sectional doors.

The 40mm double skinned steel panels are of the highest quality and provide great strength along with insulation against sound, cold and heat.

The outer fixing sub frame is a box section aluminium construction and along with the rebated top and sides of the panels create a great seal against weather whilst providing enhanced security levels. The doors are all made to measure to the millimetre with the ordering size and prices derived from the overall width and height of the doors with the frame included.

The doors will be delivered with almost everything already factory fitted for the very easiest on site installation and removing the need to hang the door leaves separately to the sub frame. The door leaves have already been set up in the factory and all that is required is the sub frame is fixed to the building structure.

Side hinged garage doors still make the most sense for so many garages particularly where a vehicle is not being stored inside. The insulation and security offered by the Carteck doors makes the choice even easier to make. If you use your garage for a workshop, gym, playroom, office, etc these doors make sense and if you access the garage regularly on foot they also make perfect sense too.

Domestic or Commercial use.
Excellent strength and locking offers great security and insulation for any garage, store room, warehouse or other building.

Colour Options
Wood design - modern steel door in classic wood look:
Golden Oak (laminate finish)
Winchester (laminate finish)
Rosewood (painted)
Night Oak (painted)

Golden Oak, Rosewood and Night Oak frame legs, headers and 3D profiles are finished in a complimentary painted wood effect finish.

Carteck Modern Side Hinged doors are supplied with a grey white stucco on the inside (RAL 9002).

The inside face of the door panels are very easy to keep clean and have no unsightly bracing bars and locking mechanisms.

3 Point Locking
Please note that 3-point high security locking is only suitable for doors over 2020mm high.

Fixing Sub Frame
All Carteck side hinged doors are factory fitted with a fully finished aluminium fixing sub frame to make installation easy and precise with tight tolerances where the door hinges and closes.

The doors are all made to order to ensure a perfect fit and maximise the width and height of your garage opening.

These doors are supplied as right or left hand leading door leaf (viewed from outside looking in).

Window Options - Scratch resistant Polymer double glazing windows

Aluminium Windows - high-grade Aluminium window designs from the Teckentrup Bling Range!

The windows options are priced per window and can be in alternative window configurations.

3-Part Threshold now standard on all Carteck Side Hinged Garage doors
Containing a new bulb seal this will help to improve weather seaing at the bottom of the door.
Being 3 part allows you to extend the end beyond the frame leg allowing a neater job and gives the option to line up with other, in-line, openings.  Extended lengths are available upon request.
Click here for further information.

> Door Lock Cylinder Security Upgrade - To make it cheaper and easier to obtain replacement keys Carteck have upgraded their locking system, keys can now be sourced from local key cutters rather than via Teckentrup.  Additional benefits include:
- BS EN1303 Cylinder Security Grade 2
- Anti-drill and anti-pick design
- 3 keys as standard
- Break off system - designed to prevent the cylinder from being broken by including a 'sacrificial' section that is designed to break off in an attempt to break the cylinder is made, whilst leaving sufficient cylinder remaining to still operate the lock with a key.



> Stainless Steel Handles - High grade stainless steel handles and lock covers are tough and attractive.
> Double seals and mitred corners - In addition to the circumferential seal around the door leaf the door frame has a three sided seal for excellent draught reduction. Profiles are mitre jointed for a neat finish.

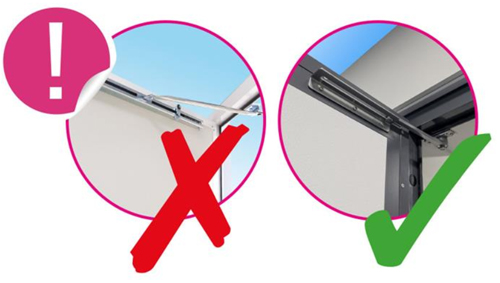

> Door stays - Protecting your door from slam closure on windy days these top grade, spring dampened stays hold the door securley in the open position.
> Flush bolt security - The inactive leaf is secured with flush bolts to the top and bottom of the leaf.
> Hardware - DIN standard CE marked European sash lock and a pair of stainless steel round bar lever handles on 50mm diameter roses. A Euro profile cylinder and thumb turn with stainless steel escuthcheons is included as standard (double cylinder, key both sides is available as an option if required). The inactive leaf is fitted with top and bottom recessed lever action flush bolts. A stay is fitted to each leaf to hold the door in the open position.
> Concealed Hinges - As part of their constant product development, Carteck have introduced Concealed Hinges to all Side Hinged doors, the benefits of this include:
- Easier trimming up process due to not having hinges at the edge of the door frame
- Only two hinges required per leaf, making adjustments faster and easier
- Improved sleek look
- No additional costs
- Improved security by removing the visible point of attack and making it harder to lever open the door.
See Installation tab for vidoe of how to adjust a concealed hinge.

Click here to view Technical Page to help with Measuring >

Please see the Declaration of Performance for performance details.

Installation details provided with the door.

The door is delivered with the frame, hinges and all major components factory fitted, ready for easy on-site installation.

2-year manufacturer’s guarantee
> on window units, hinges, locks, handles and stays
(opening/closing max. 5 times a day)

10-year manufacturer’s guarantee
> on the panel against rust inside and outside
> on the steel splitting away from the foam
> on material and manufacturing faults of all immoveable frame parts, if it can be proved that they are inoperative or their use is impaired
> on floor seals, central seals, side seals and header seal against perishing

The guarantee does not apply to doors that are subjected to extreme conditions, e.g. corrosive influences resulting from use in a coastal climate with high salt content.

Ordering: The ordering dimensions refer to the OVERALL width and height of the door and sub fixing frame combined and the door is delivered with the frame factory fitted.
Please allow for any tolerances you require in the ordering dimensions and the doors will be manufactured to the exact dimensions specified.|
