GDO 40mm Luxe Moreton (8 Trend Colours) Steel Side Hinged - insulated
GDO
Side Hinged - insulated Steel
GEAR TYPE: Side Hinged
Christmas Sale! GarageDoorsOnline are offering an Extra £100 Off ALL Insulated Side Hinged Garage Doors.
Use the Voucher Code: SANTA100 at the checkout to save £100 Click here for details.
DUE TO EXCEPTIONALLY HIGH DEMAND, DELIVERY OF THESE DOORS MAY BE DELAYED. PLEASE CONTACT US FOR THE LATEST LEADTIMES.
Insulated, double skinned, steel side hinged garage doorset. Factory pre assembled with everything you need already fitted and ready to go!
Double skin steel door leaves, aluminium outer sub frame, locking, hinges, handles and door stays, all factory pre fitted for the very easiest on site installation.
No preparation required, door is prefinished in choice of super high quality powdercoat colours on a super stylish smooth finish, Horizontal Ribbed design door.
- Factory Pre-assembled for Easy Installation
- Pre Finished Door Panels and Frame
- No Warping, Cracking or Peeling
- 40mm Double Skinned Insulated Steel Door Leaves
1
Choose Your Sizes

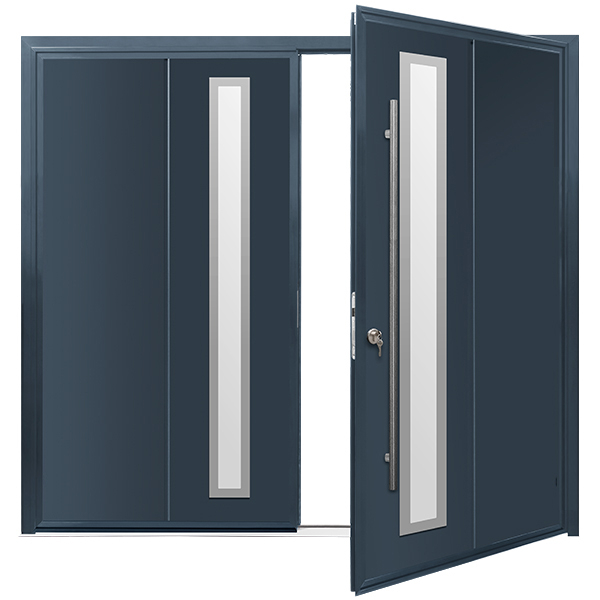

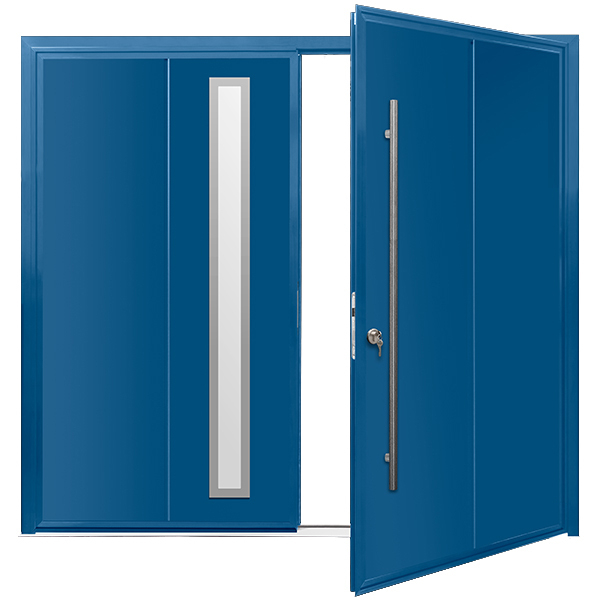

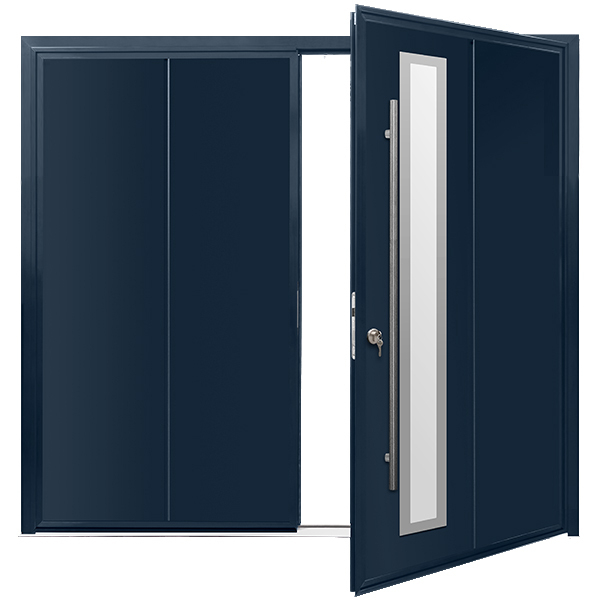

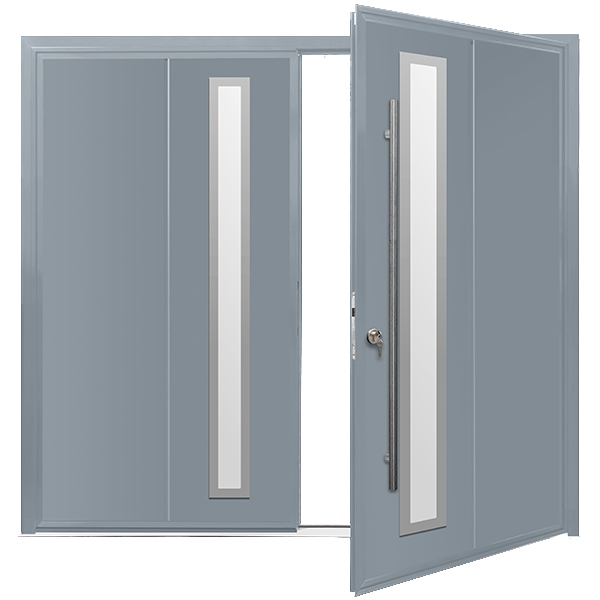

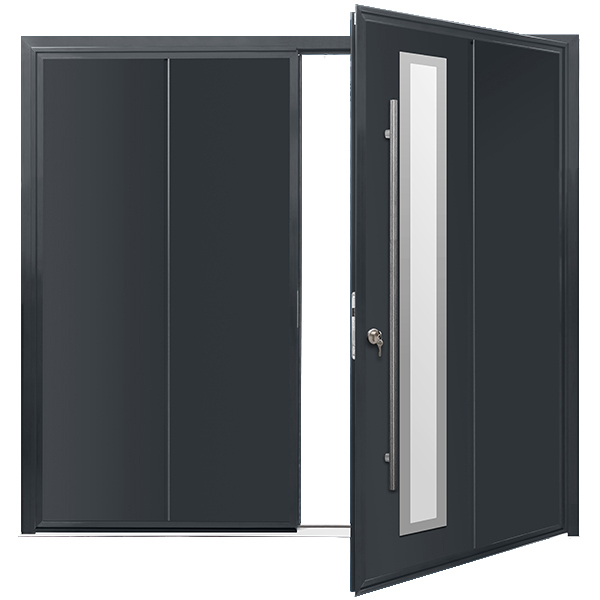

The GDO Moreton side hinged garage doors offer the traditional vertical line door design complimented with a long window and long stainless steel handle, perfect for a modern style. The woodgrain embossing is pressed into the steel surface and replicates a wood finish so well. The advantage of this woodgrain surface is that any minor dents or dings are generally hidden well.
Available as made to measure doors as standard, the Moreton doors are available in sizes up to 2500mm wide and 2350mm high for the Overall width and height, including the outer sub frame.
They are manufactured to the millimetre for your perfect fit.
Measure your garage opening in several places and take off your own tolerance for the ordering sizes as the doors will come exactly to the dimensions ordered online. See ‘measure’ Tab for more details.
One great advantage of side hinged garage doors is their ease of use. They open and close smoothly and quickly, without the need for complex machinery or motors or any lifting of the door panels above your head. This makes them perfect for homeowners who prefer a more traditional and practical approach to garage door operation and in most cases do not use their garage for vehicle storage.
A made to measure steel garage door set ordered to the millimetre by the overall width and height dimensions including the outer sub frame
Choose the side for your main active door leaf which also has the handle fitted for operating.
The ‘slave’ door leaf will have the internal bolts and latches to hold closed until you need to open.
Choose your threshold option. The standard threshold supplied as standard is a raised
The window dimensions are 980mm long x 140mm wide.
Extra Security Locking Options are available with the 3 point higher security locking system.

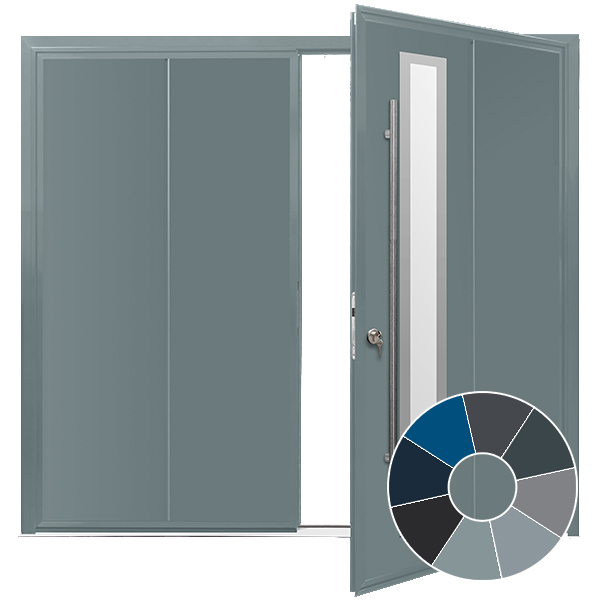

Choose your finished outer face colour for the doors and the sub frame.
The standard door face surface is a wood grain textured finish to look like a grained wood effect and offering excellent camouflage for any minor dents and dings which may occur during the doors life.
Colour options are:
Graphite Grey RAL 7024
Anthracite Grey RAL 7016
Grey Aluminium RAL 9007
Silver Grey RAL 7001
Window Grey RAL 7040
Jet Black RAL 9005
Steel Blue RAL 5011
Gentian Blue RAL 5010
Anthracite Grey RAL 7016
Grey Aluminium RAL 9007
Silver Grey RAL 7001
Window Grey RAL 7040
Jet Black RAL 9005
Steel Blue RAL 5011
Gentian Blue RAL 5010
Woodgrain textured external door panel finish with powdercoat colour finish from selection of heritage colours. Internal face is a stucco off white colour as standard.
• Long (1200mm) Stainless steel handle to the active leaf
• 3 keys as standard

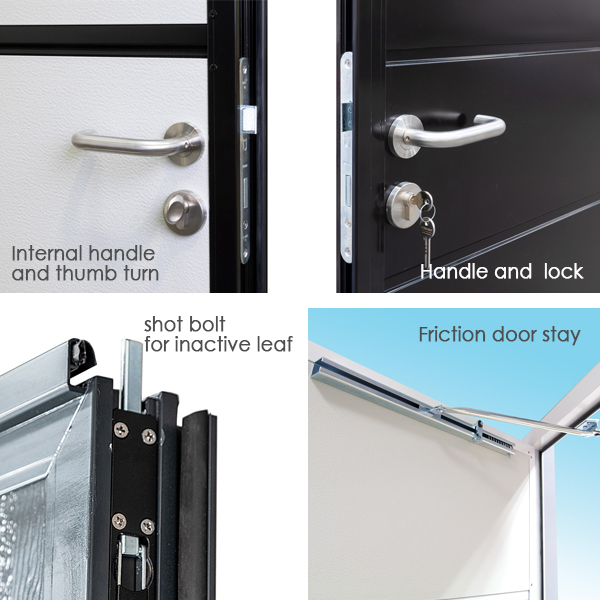

• Handle and Thumb turn to the inside for easy and convenient unlocking and exit
• Easy-latch concealed shoot bolts to the top and bottom of the inactive leaf
• Aluminium strip threshold with blade seal to the bottom of each door leaf
• Each leaf is fitted with a easy-action friction stay to hold the door leaf open

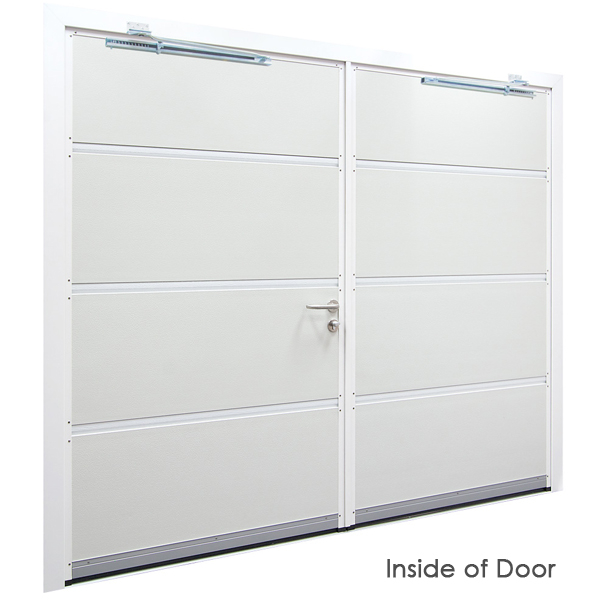

• The inside of the door has a frame and panel section joints that match the colour of front face of the door, with a practical grey white stucco texture (RAL 9002) to the back of each panel section
> High Quality Hinges - Aluminium hinges with secured hinge bolts to make it extremely difficult to lever open the door and are easily adjusted.
> Stainless Steel Handles - High grade stainless steel handles and lock covers are tough and attractive.
> Double seals and mitred corners - In addition to the circumferential seal around the door leaf the door frame has a three sided seal for excellent draught reduction. Profiles are mitre jointed for a neat finish.
> Door stays - Protecting your door from slam closure on windy days these top grade, spring dampened stays hold the door securley in the open position.
> Flush bolt security - The inactive leaf is secured with flush bolts to the top and bottom of the leaf.
> Hardware - DIN standard CE marked European sash lock and a pair of stainless steel round bar lever handles on 50mm diameter roses. A Euro profile cylinder and thumb turn with stainless steel escutcheons is included as standard (double cylinder, key both sides is available as an option if required). The inactive leaf is fitted with top and bottom recessed lever action flush bolts. A stay is fitted to each leaf to hold the door in the open position.
Installation details provided with the door. Carteck Fitting Instructions for side hinged garage and side doors
The door is delivered with the frame, hinges and all major components factory fitted, ready for easy on-site installation.
2-year manufacturer’s guarantee
· On hinges, locks, handles and stays
(opening/closing max. 5 times a day)
10-year manufacturer’s guarantee
· On the panel against rust inside and outside
· On the steel splitting away from the foam
· On material and manufacturing faults of all immoveable frame parts, if it can be proved that they are inoperative or their use is impaired
· On floor seals, central seals, side seals and header seal against perishing
A:
Fitted correctly in the opening these insulated side hinged garage
doors are very good for heat, cold and sound insulation with
weathersealing comb
(read more)
A:
No, we supply and deliver doors only.
However, we do have many skilled garage door installer contacts who
will gladly install the door and/or oper
(read more)
A: Yes you can collect by prior arrangement from our warehouse in
Wellingborough. This of course means no delivery charges. Please be
aware how large and
(read more)
A:
Most doors and electric operators are supplied with full printed
installation instructions.
Many PDF installation instructions can also be found
(read more)
