GDO SmartRoll 77 Premium IO Remote Handset with Smartphone Control (3 Standard Colours) Aluminium Roller door - insulated
GDO
Roller door - insulated Aluminium
GEAR TYPE: Roller Shutter
Christmas Sale! GarageDoorsOnline are offering an Extra £50 Off the NEW GDO ROLL77, Insulated Roller Doors.
Use the Voucher Code: FESTIVE50 at the checkout to save £50 Click here for details.
Using the most popular and durable size of double walled aluminium insulated slats, this electric roller garage door is a robust, high quality design and uses a Somfy Rollixo Premium IO remote control system complete, with optical safety detection in the bottom leading edge weatherseal on the door. It also includes the Somfy electric motor drive as standard.
This is a semi smart remote control electric roller garage door as it uses the Somfy Connectivity system for smartphone control and voice control via Alexa or Hey Google.
* Remote Control - 2 no. Somfy IO Keygo 4 handsets
* Somfy Connectivity for smartphone app control on multiple phones
* Voice control options via Alexa or Hey Google
* Somfy tubular IO motor drive as standard
* Built in button control on wall control panel
* Built in alarm system detecting forced door curtain attempts
* Built in courtesy light on wall control panel with programmable duration for turning off

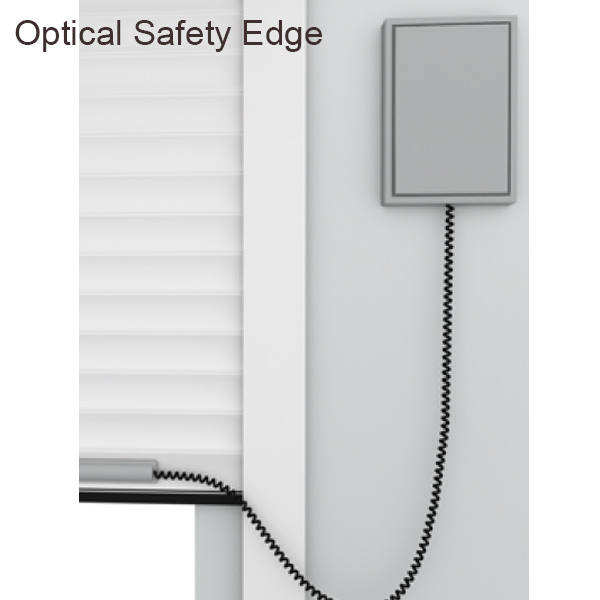

* Optical safety edge obstacle detection system
* Additional infra red safety beams to allow auto door close facility if required
* Full Hood Cover for curtain roll included for increased curtain and internal weather protection
- 5 year Warranty as standard*
- Made to Measure size as standard
- Suitable for internal, external and inbetween fitting
- 3 standard colours to choose
1
Choose Your Sizes
Smartphone roller door control via a free app from Somfy. Multiple smartphones can be programmed to work this electric roller door along with voice control too.
‘Semi smart’ simply means you don’t have the very advanced programmable scenarios of the Tahoma Switch control version which also can connect with non Somfy products.
The connectivity kit included with this door enables control of up to 20 products but they will have to be Somfy products using either RTS or IO protocol.
This semi smart electric aluminium roller garage door is purpose made to the millimetre and is supplied as standard with Somfy Rollixo Premium IO remote control operation including a built in courtesy light with the Rollixo wall mounted control panel and integrated control buttons for the door control internally.
The IO protocol this control panel works with enable the user to see exactly where the door is and whether it is open or closed. This is because of the 2 way communication IO provides to any user.
With the additional infra red beams included you can also set this roller door to close automatically after a preset time once opened fully. Very useful to ensure your door is always closed, just like most electric entrance gates are programmed to work.
There is a built in alarm to warn of any attempted forced lifting of the door when closed.

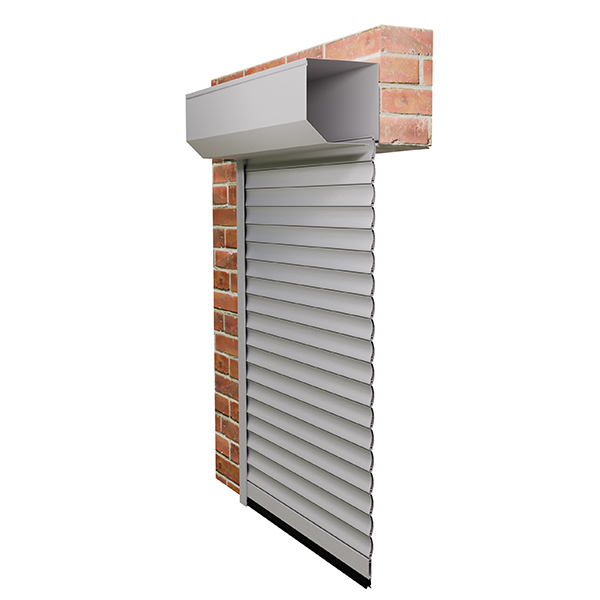

A full hood cover is included as standard for maximum protection of the curtain and increased weather protection.
This is a fantastic premium roller garage door with high quality components and specification and a 5 year warranty. The very best value for money electric remote operated aluminium roller door.
GDO insulated roller doors are manufactured in the UK for GarageDoors Online by the leading garage door supplier SWS/AlluGuard. Their decades of manufacturing experience ensure only the highest quality materials and production techniques are used, whilst the simplified design helps keep costs as competitive as possible. Fitted with wired optical safety edge as standard.
2 no. IO handsets and an internal premium wall mounted control panel are standard, along with leading safety edge detection for preventing closure onto any obstacles and full compliance with UK regulations on the use of electric operated doors with remote operation.
Using 77mm double skinned insulated aluminium slats this roller garage door is strong and offers good insulation in the mix too.
Made to measure sizes up to a maximum width of 5200mm including the guides either side.
Maximum height available is 2900mm, plus the height of the roll and endplates which is 300mm
The aluminium side guides are either 70mm or 90mm wide, depending on the door width ordered.
Doors over 3000mm wide will have 90mm guides as standard so the clear opening width will be 180mm less than the Ordering Width.
The door curtain is available in 18 premium and high quality powdercoated colours with optional half or full hood in a matching colour. If you require a contrasting hood or guides colour please call or email for details and pricing.
The door also has an internal manual winding handle system to operate in the event of a power failure, situated alongside the motor drive, which you can choose the side for operation when ordering. Optional low level manual override is available if you do not have another access door into your garage.
Somfy Connectivity Kit Specification:
Article number: 1870755
Radio frequency: 868-870 MHz and 433.42 MHz
Technology: io-homecontrol & RTS
Connections: 1 x Micro-USB
Current: 230 V / 5V DC 1 A
Enclosure class: IP30
Range: 250 meters open field
Working temperature: 0 ° C to + 40 ° C
Dimensions: 138 x 72 x 26 mm
Weight: 87 g
Color: White
Location: Indoor
Maximum number of connected products: 20
Warranty: 5 years
No compatibilities with sensors, security and heating systems
No timer feature: only manual scenes available in the app (20 max)
No partner compatibilities (except Velux io products)
With the Connectivity kit you can easily control your Somfy motors & lighting by app and voice.
Manage your Somfy's compatible home equipment :
Connect and centralise your home
Control a single or a group of products
Check and control your devices remotely
Control it from your smartphone, or up to 10 other smartphones through the TaHoma app or by voice with a compatible voice assistant
Scheduled and advanced scenes are not available with the Connectivity kit. The Connectivity kit is not compatible with TaHoma switch USB adapter and TaHoma switch Ethernet adapter
Somfy IO Information..
io-homecontrol®
The latest generation of Somfy products for outdoor sun protection works with the io-homecontrol® protocol. The motors and connectable Somfy products have specific properties and applications. It is generally recognised that RTS will be gradually phased out in the future and IO protocol will be the normal specification, although it is possible for all the interfaces to communicate with both options..
Feedback function: the protocol always gives a feedback of the product on your control whether it has been properly opened or closed.
Safe: encryption (encryption) of wireless digital communication between mutual products.
Modular and very easily expandable.
Smart home, ready for the future!
io-homecontrol® motor types:
Outdoor patio awnings: Sunea io, Maestria io, Sunilus io and Sunilus Screen io
Roller shutters and Roller Garage Doors: S & SSO RS100 or Oximo io
Garage doors (up and over and sectional): Dexxo Pro io
Interior blinds & curtain tracks: (in development)
Please note: upon delivery, the accessory box will include a QR code to direct you to the most up-to-date installation instructions.
Warranty Terms & Conditions
Certificate of Guarantee
1.1. The following guarantees apply to GDO Roll 55 and Roll 77 Electric Button Control roller garage doors, subject to correct installation, maintenance and operation:
1.1.1. GDO Roll 55 and Roll 77 Electric Button Control roller garage doors are guaranteed against defect of material or workmanship by the manufacturer with a parts only warranty for a period of 2 years from the date of original purchase.
1.1.2. GDO Roll 55 and Roll 77 Electric Button Control roller garage doors’ exterior finish is guaranteed to provide an effective weatherproof membrane that will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase.
1.1.3. Externally fitted reverse roll GDO Roll 55 and Roll 77 Electric Button Control roller garage doors will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase. Colour change or fade to the exterior surface will be limited and uniform during the guarantee.
1.1.4. GDO Roll 55 and Roll 77 Electric Button Control motors and the Genesis, Teleco Simple and C10 control units are guaranteed for a period of 2 years from the date of purchase.
1.1.5. Somfy motors and the Rollixo control unit are guaranteed for a period of 5 years from the date of purchase.
1.2. This guarantee is in addition to your legal rights in addition to the manufacturers products that may be faulty or not as described. Advice about your legal rights is available from your local Citizens’ Advice Bureau or Trading Standards Office.
1.3. The following terms apply to all GDO Roll 55 and Roll 77 Electric Button Control roller garage doors purchased for installation in the UK. The terms shall prevail or be in addition to any agreement between you, the customer, the installer and/or the manufacturer.
1.4. The manufacturer will replace any components of our products sold as GDO Roll 55 and Roll 77 Electric Button Control roller garage doors (‘the Product’) where the manufacturing process has resulted in a defect occurring during the relevant period specified in the Conditions of Guarantee.
Ordering size is the Over Guide Width (OGW) x Guide Height (GH).
Doors up to 3000mm wide have 70mm wide guides
Clear opening width = Ordering size + 140mm*
Doors over 3000mm wide have 90mm wide guides
Clear opening width = Odering size + 180mm*
* These measurements are correct for behind fit installations, please contact us for guidance inbetween fit installations.
Clear opening height = guide height - 50mm (to allow for the bottom slat hand-down into the guide).
Overall Height is the guide height plus the endplate size at 300mm
