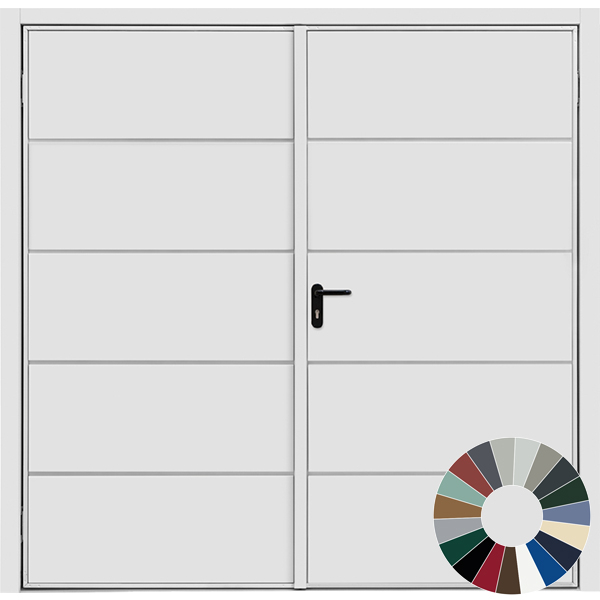

The Garador Ascot steel side hinged doors combine robust and reliable performance with quick and simple access.
These doors are fitted with a lever handle inside and out, providing you with easy access at all times. For added security, the option of an outside knob is available.
- Strong and robust doors
- Range of Factory Finished Colour Options
- Easy Fit with Factory Fitted Steel Frame
- Concealed Hinges as Standard
Please Note: The doors are shown as 50/50 door split.
Up to 2234mm overall frame width these doors are also available as a 1/3-2/3 door configuration.
Domestic garage doors
Standard powdercoat factory finish is white inside and out. A steel sub fixing frame is factory fitted as standard and finished to the same colour as the door panels.
The order sizes refer to the nearest imperial inside dimensions of the steel sub frame and you simply add 150mm to the width and 75mm to the height for the overall frame dimensions. i.e. 8' x 7' door size is 2419 plus 150mm and 2136 plus 75mm to give overall frame dimensions of 2569 x 2211.
Pre-Framed Design and Concealed Hinges
All doors come pre-framed with 75mm wide door frame and right-hand door leaf leading as standard. Hinges are concealed in the frame, with no hinge knuckles raised above the door's surface.
Two-Point Locking
A shoot bolt latch is used to secure the fixed door leaf at the top and bottom of the door.
Door Stays and Gas Pistons
Side Hinged doors come complete with solid metal door stays and pull cord release. Gas pistons are fitted to each door leaf for a controlled closing motion.
Rubber weather seals
Sturdy rubber weather seals are built into the door frame, along the door stop and leading door leaf.
Aluminium Threshold
As standard a 20mm aluminium threshold for the base of the door is supplied.

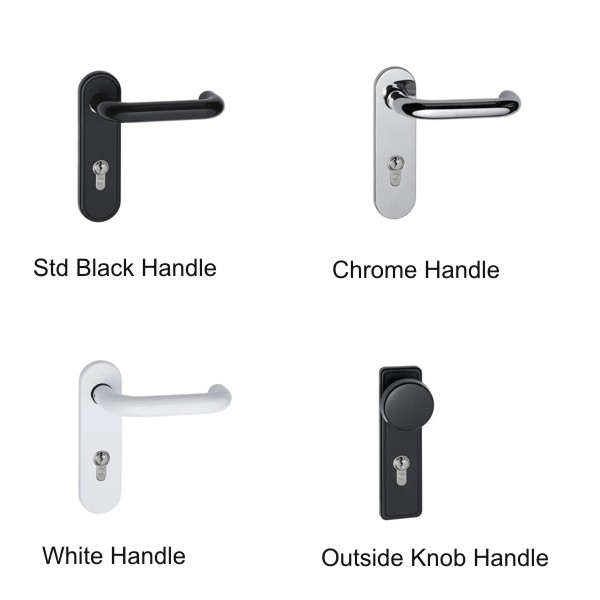

Handle Options
Black lever handle supplied as standard on the right side (viewed outside) and centrally located flip-up handle which releases shoot-bolt latches at the top and bottom of the fixed leaf (viewed inside).
The following powdercoat colour finishes are available:
White RAL 9016 as standard
Terra Brown RAL 8028
Blue RAL 5005
Steel Blue RAL 5011
Moss Green RAL 6005
Red RAL 3003
Black RAL 9005
Anthracite Grey RAL 7016
Clay Brown RAL 8003
Fir Green RAL 6009
Light Grey RAL 7035
Light Ivory RAL 1015
Pigeon Blue RAL 5014
Stone Grey RAL 7030
Window Grey RAL 7040
Golden Brown
Chartwell Green
Burgundy Brown
BS 13241 Compliant - All Garador garage doors comply with the latest European safety standards.
The benefits of a Garador Beaumont side hinged door:
> Both doors open outwards providing unrestricted space within the garage
> Constructed from high grade galvanised steel
> Weather strips around 3 sides of the door to help prevent draughts
> Shoot bolt latch at top and bottom of door for security
> Centre style helps prevent forced entry to locking system
Installation Instructions are provided with every door.
GARADOR GARAGE DOOR WARRANTY
Warranty Period
The purchaser is granted a warranty covering the safe and reliable function of the Garador garage door for a period of 10 years* from the date of purchase The warranty period for replacement parts is 6 months or to the end of the current warranty period, which ever is longer. The door mechanism and steel frame (if applicable) is covered by the 10 year* warranty period.
Requirements
Warranty claims are only applicable in the country where the garage door was purchased. The warranty only covers damage to the contract object. The fully completed warranty card together with the receipt of purchase correspondingly dated substantiates your right to claim under the warranty.
Performance
During the warranty period we undertake to rectify any and all defects to the Garador product which can be proved to be attributed to a material or manufacturing fault. We pledge at our discretion either to exchange the defective merchandise for faultless merchandise, repair it or allow a reduction in price. We do not accept costs for dismantling and installation nor for carriage. Replaced parts become property of Garador Ltd.
The warranty does not cover damage caused through: -
normal wear and tear
improper installation
negligent care and maintenance
improper initial and subsequent operation
negligent or wanton destruction
external influences such as fire, water, salts, alkaline solutions, acids,
abnormal environmental Influences
mechanical damage through Improper transport and fitting
priming and other surface protection treatments
incorrect or too late applied surface protection treatments
repair by non-qualified persons
using non-Garador parts without the approval of the manufacturer
removal of the product number or making it unidentifiable
