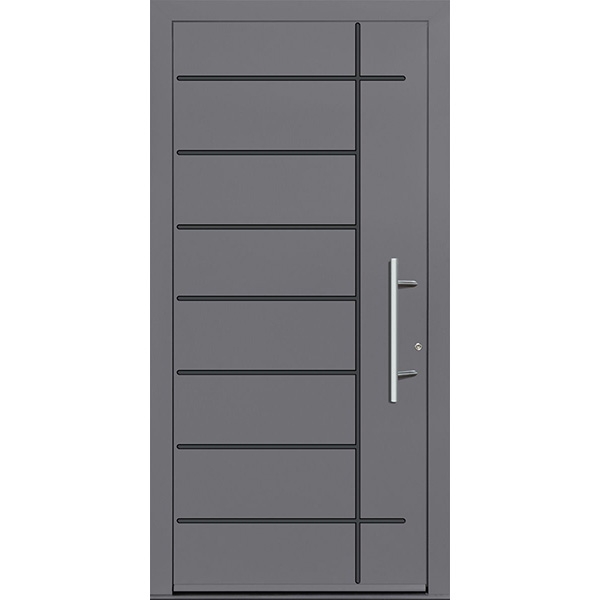

The Ryterna RD80 Aluminium Entrance Doors are high quality doors made of aluminium profiles with 20mm thick thermal break.
The door leaf is 80mm thick with aluminium sheet skin.
> Leaf can be with 41 mm thick infill panel or safety glass.
> Triple safety glazing for flush doors.
> Magnetic threshold.
> U-value up to 0.68W/m2K.
> Secure multiple lock.
Certificated according to security and burglary resistance class RC3* (for doors without infill or windows).
Thermal insulation - freon free PU foam.
*for additional price, standard RC2
Reasons to Upgrade to RD100:
> Triple safety glazing for flush doors.
> Frame is made of aluminium profiles with 34 mm thick thermal break.
> Leaf can be with 57 mm thick infill panel or safety glass.
> Secure multiple lock.
> Magnetic threshold.
> U-value up to 0.65W/m2K.
> Leaf is 100mm thick with aluminium sheet skin.
Certificated according to security and burglary resistance class RC3* (for doors without infill or windows).
Thermal insulation - freon free PU foam.
*for additional price, standard RC2
All doors are factory framed.
All dimensions are specified for overall frame sizes.
Windows
Ryterna offer x13 basic door leaf glazing options. In addition you can modify them by changing the layout and quantity of windows.
All windows have quadruple safety glazing. No window frame is required.
Glazing Options:
Clear, Matt or Tinted.
The window frames are fixed on the door leaf surface.
The appliques are made from durable aluminium and are 1mm thick.
Ryterna can paint your door almost any colour, which means you can match your front entrance door with your facade or garage door.
Handle Choices
Stainless Steel Handle (supplied on the outside)
H45R - Ø 30mm 45° fine matt polished
H45R-500 (H 500mm)
H45R-800 (H800mm)
H45R-1200 (H 1200mm)
The inside handle will be a lever handle in a choice of white (HL) or aluminium (HLA).
Stainless Steel Handle (supplied on the outside)
30x20 mm 45° fine matt polished
H45S-500 (H 500mm)
H45S-800 (H 800mm)
H45S-1200 (H 1200mm)
The inside handle will be a lever handle in a choice of white (HL) or aluminium (HLA).
Lever/Knob Handle in either white (HL) or aluminium (HLA).
Warranty terms:
• The 10-year warranty is granted for Ryterna garage door sections from rust –through perforation, delamination, and disintegration.
• 5-year warranty is given for wearing parts such as springs, cables, drums, rollers, hinges on residential sectional garage doors TL, R40 under normal use of max 5 open-close cycles per day.
• 5-year warranty on springs, cables, drums, rollers, hinges on industrial sectional doors TLP under normal use up to 10 open-close cycles per day.
• Nonstandard color painted doors and doors cladded in Okoume, Retro, Alumax and other special design doors, the 2-year warranty period is applied.
• Visual inspection of door panels should be done at distance not less than 3m from the door.
• 2-year warranty for wearing parts of SH1, SH2 and SSD type doors.
Warranty is applicable only in the country where the door was purchased through the authorized distribution channels. To enable warranty claim to be proceeded, undersigned warranty card (in user manual) and original invoice with date of purchase should be provided.
The warranty does not cover:
• Mechanical damages due to improper transportation or portage.
• Mechanical damages due to improper installation, maintenance and operation.
• Normal wear and tear.
• Deflection of door sections because of heat absorption – Bi-metal effect (Dark color doors should be avoided to be exposed to direct sunlight).
• Color shade changes caused by natural environment influence.
• Humidity condensation.
• Damages caused due to improper storage of the product (in humid environment, outdoor, and (or) longer than 3 moths)
• Damages caused by absence of regular maintenance (proof-book registered)
• Damages due to use of non-origin parts.
• Damages caused due to external influences such as salt, fire, water, acids, alkali, abnormal environmental influences (e.g. salty water coastal regions)
• Warranty claim can be enabled only in presence of production number on the product.
Damages or defected goods should be claimed in 5 working days after delivery. Damages made during the transportation should be fixed at unloading. Report must be made before installation if door parts are damaged during transportation, have scratches or dents or missing parts.
Images must be attached with damaged parts still in the package. If sending close up image, please make sure to send another one from the distance, so that packaging could be seen.
