* Unfortunately this product is currently unavailable, please contact us to discuss alternative options *
The New Teckentrup Swing Secure Insulated Side Hinged Doors are certified to the Secured by Design Police Preferred Specification as standard, tested to LPS 1175 Issue 8 A1 (SR1).
These doors are the most insulated, secure and stylish side hinged garage doors you could choose for your home. They are one of the first steel hinged doorsets to be offered as garage doors with tested performance ratings for insulation, windload, watertightness, air permeability, security and operating cycles.
The Teckentrup 62 Swing Secure is CE marked to EN14351-1 and has certified performance to confirm its outstanding capability. Two examples of this are:
> Thermal Transmittance EN 13241-1 B: 1.4 Wm²K (even allowing for a 3mm gap under the door)
> Operating cycles EN1191 C5 (200,000)
IMPORTANT NOTE REGARDING DELIVERY: Teckentrup 62 Swing Doors are exceptionally heavy. Deliveries will be made to the kerbside via a tail lift.
It will be required that the customer has enough people, or a fork lift to help offload.
If this is not possible, then the order can be broken down into parts to reduce the weight. Please note that there will be an added charge for this.
The Teckentrup 62 Insulated Side Hinged Doors come as standard with a block frame, raised threshold and anodised aluminium surrounds for the windows (included in price).
All Teckentrup doors are made to order.
The door and frame are CE marked and have been independently tested to the following characteristics:
Insulation (Thermal Transmittance) - EN 13241-1 B: 1.4 Wm²K
Security (optional) - EN1627/30 RC2 or Secured by Design Police Preferred Specification.
Operating Cycles - EN1191 C5 (200,000)
Air Permeability - EN 12426: Class 2
Watertightness - EN 12425: Class 2
Operating Forces - EN 12604: 150N
Resistance to Windload - EN 12424: Class 2
Secured by Design as standard
Certified to the Secured by Design Police Preferred Specification as standard, tested to LPS 1175 Issue 8 A1 (SR1).
As well as the certification, the door will have the following:
• Stainless steel lever handles
• Reinforced cylinder guard around the euro cylinder
• Additional internal reinforcing in the door leaf (not visible)
• Stainless steel fixings to suit frame type
Doors with windows will be supplied with a lock cylinder that is key operated from both sides to maintain security certification.
Door Colours
White RAL 9016
Anthracite Grey RAL 7016
Jet Black RAL 9005
Handles
A stainless steel lever handle and security keyed cylinder is supplied as standard on all doors.

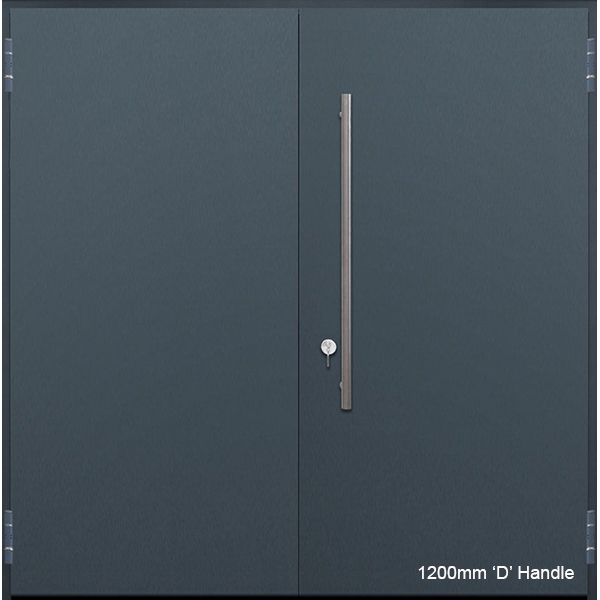

Stainless steel pull handles are available in two lengths, either 1200mm or 1500mm. These can be supplied individually or in pairs.
Security
Each door is supplied with a pair of Security Keys. These keys add extra security by preventing unauthorised copying. They cannot be cut by anyone other than the issuer of the key - Teckentrup.
Hinges

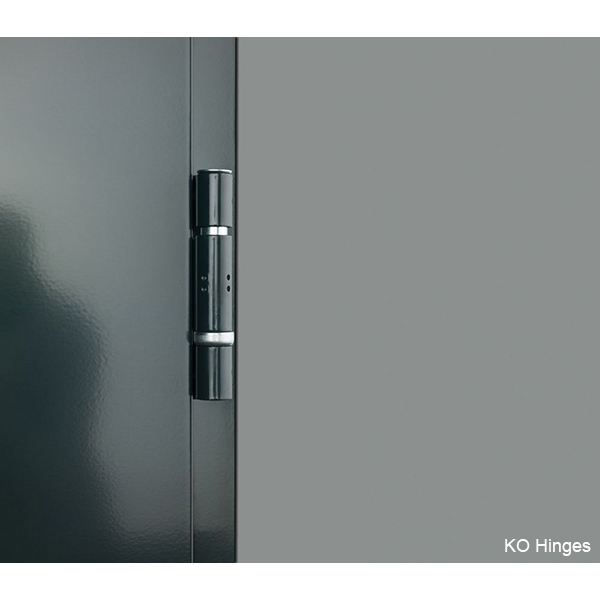

KO hinges are supplied as standard, these are matched to the colour of the door. Alternatively, stainless steel hinges are available at an extra cost.
Windows and Glazing Options
All windows are double glazed and available with clear or satin glazing. The satin glazing allows light in, but with the extra privacy.
The windows have an anodised aluminium surround.
Window Sizes: Ø300
Frame
Block frame with mineral wool infill.
Threshold
Raised threshold as standard for improved weather protection. The stepped aluminium threshold with a bulb weather strip is provided. When the door leaf is closed against the weatherstrip it creates an improved barrier against dust and other debris. The threshold is DDA compliant for wheelchair access.
Stays
Foot operated door stays x2 to hold the door in the open position.
Please Note: These stays are not designed for high wind applications.
Rain-Guard
Anodised aluminium (not colour matched).
The rain-guard is supplied with all doors to help limit water ingress at the top of the door.
Installation Instructions are provided with every door.
2-year manufacturer’s guarantee
> on mechanical defects, material and manufacturing flaws of all non-moving parts of the frame that are verifiably unusable or whose usability is substantially compromised.
10-year manufacturer’s guarantee
> on panels against rust penetration from inside to outside
> on floor seal and frame seals against rotting
The guarantee does not apply to doors that are subjected to extreme conditions, e.g. corrosive influences resulting from use in a coastal climate with high salt content.
