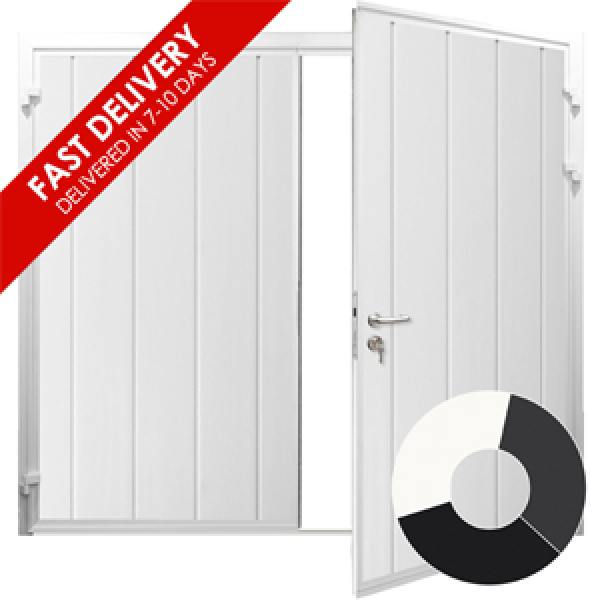

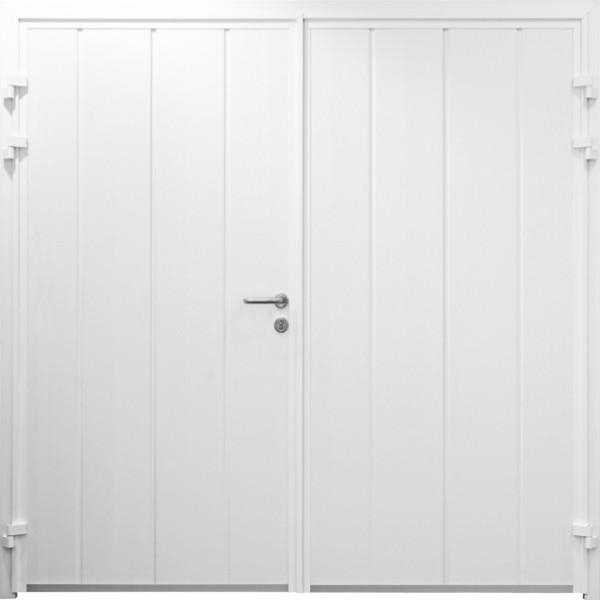

Carteck Switch 40mm Centre Ribbed Vertical (3 Standard Colours) garage door Steel Carteck

 'Out with the old. in with the new' - Make that 'switch' to these insulated, higher security, side hinged garage doors, perfect for any single width garage that requires easier pedestrian access in and out. Side hinged doors are making a big comeback in the UK as less and less people use their garages for their vehicles.

Another room to your home and one which needs better insulation against the weather and cold maybe? The Carteck Switch insulated side hinged doors are perfect for so many standard single garages and have been designed to be a straight swap for the 2 most popular brickwork opening width sizes in the UK with a choice on 3 different heights to also suit popular floor to lintel heights.

This is the very popular Vertical Ribbed design model with a totally silky smooth finish and high quality powdercoated colour finish in a choice of 3 colours. Contemporary, but also traditional and timeless design to suit so many properties.

Designed to fit inbetween your garage structural opening, these side hinged garage doors offer greater security, insulation and overall confidence than any single skin steel up and over or side hinged doors can. 40mm thick double skinned steel door panels provie the basis for stregth along with the factory fitted, box section, aluminium fixing frame..
Anti drill and Anti pick, enhanced locking cylinder locking with three keys supplied as standard with a thumb turn internally.

All components on this door are factory fitted providing you with a pair of insulated garage doors all ready for the very easiest on site installation when delivered to you.
See full specification list in the 'Specification' tab to the right..

3 standard and very popular high quality colour finishes are offered with the 2 widths and 3 height options to choose from.

'Make the Switch' and enjoy greater peace of mind for your garage and contents security along with a far greater degree of climate control internally.

Domestic or Commercial use.
Excellent strength and locking offers great security and insulation for any garage, store room, warehouse or other building.

Certified U value of 2.3 W/m2K

Carteck Modern Side Hinged doors are supplied in a choice of 39 high quality powdercoat colours for the outside face and grey white stucco on the inside (RAL 9002).

BS EN 13241-1 - These doors are independently tested and verified to all current safety legislation and carry a CE/ UKCA Mark.

High Quality Hinges - Aluminium surface mounted hinges are easily adjusted. Three hinges are fitted to each leaf.

Friction Door Stays - Each leaf is fitted with an easy-action friction stay to hold the door leaf open.  This is not designed for high wind applications.

Aluminium Strip Threshold - The aluminium profile provides a simple low profile threshold (without a weather strip).

Solid 40mm Thick Panels - Doors are built with 40mm thick interlocking insulated panels and an aluminium hollow section frame that provides excellent strength, rigidity and resistance to corrosion.

Double weather strips and mitred corners.  In addition to the circumferential weather strip around the door leaf, the door frame has a three-sided weather strip for excellent draught reduction. Profiles are mitre jointed for a neat finish.

Flush bolt Security - The inactive leaf is secured with flush bolts to the top and bottom of the leaf. Each bolt has an adjustable flush bolt plate for greater versatility on the position of the leading edge on the inactive leaf as seals compress over time.

Stainless steel handles and security locking.  High grade stainless steel handles and lock covers are tough and attractive, whilst the latch and dead bolt combination provides dependable security. A convenient thumb turn operates the lock from the inside. The inactive leaf incorporates a stainless steel strike plate with an adjustable latch plate for precise latching and a steel lock keep box for added attack resistance.



Security lock cylinder. Certified to BS EN1303 Cylinder Security Grade 2, our lock cylinder provides enhanced security and is anti-drill and anti-pick. The cylinder also features a break off system which is designed to prevent the cylinder from being broken by including a 'sacrificial' section that breaks off if an attempt to break the cylinder is made, whilst leaving sufficient cylinder is made, whilst leaving sufficient cylinder is made, whilst leaving sufficient cylinder remaining to still operate the lock with a key.

Every door comes with 3 keys as standard.  Additional keys can be cut at a high street locksmiths.

Window Options - Scratch resistant Polymer double glazing windows

Installation details provided with the door.

The door is delivered with the frame, hinges and all major components factory fitted, ready for easy on-site installation.

2-year manufacturer’s guarantee
> on window units, hinges, locks, handles and stays
(opening/closing max. 5 times a day)

10-year manufacturer’s guarantee
> on the panel against rust inside and outside
> on the steel splitting away from the foam
> on material and manufacturing faults of all immoveable frame parts, if it can be proved that they are inoperative or their use is impaired
> on floor seals, central seals, side seals and header seal against perishing

The guarantee does not apply to doors that are subjected to extreme conditions, e.g. corrosive influences resulting from use in a coastal climate with high salt content.

Ordering: The ordering dimensions refer to the OVERALL width and height of the door and sub fixing frame combined and the door is delivered with the frame factory fitted.
Please allow for any tolerances you require in the ordering dimensions and the doors will be manufactured to the exact dimensions specified.
