GDO Roll 55 Remote Control Full Hood (15 Colour Options) Insulated Roller door garage door Aluminium GDO

NEW from GDO, this electric aluminium roller garage door is purpose made to the millimetre and is supplied as standard with remote control operation.

GDO insulated roller doors are manufactured in the UK by the leading garage door supplier SWS/ AlluGuard. Their decades of manufacturing experience ensure only the highest quality materials and production techniques are used, whilst the simplified design helps keep costs as competitive as possible.

2 remote control handsets and an internal wall mounted control panel are standard, along with leading safety edge detection for preventing closure onto any obstacles and full compliance with UK regulations on the use of electric operated doors with remote operation. > Available with wired or wireless safety edge.

Made to measure sizes up to a maximum ordering width of 3000mm including the guides either side.
Maximum height is 2225mm plus the height of the roll and endplates which is 205mm

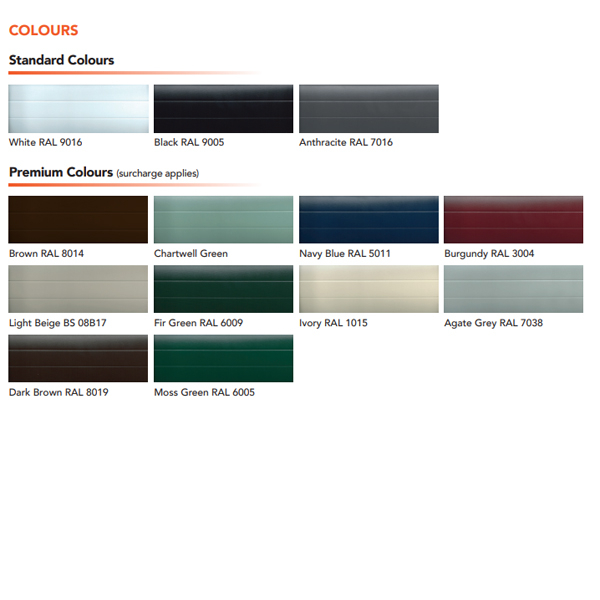

Available in 3 very popular and striking colours with white guides and hood when ordered.
Optional 12 premium colour finshes at small surcharge.
The guides, ednplates and half hood or full hood are also finished in the same colour as you choose for the curtain when ordering.

This is the Full Hood cover version for this roller door where the complete enclosure of the curtain ensures the very best weather protection at all times.
The ‘half hood’ version of this roller door has a folded aluminium hood cover which forms a front facia when fitting behind or inbetween any opening to give a neat finish and better sealing when closed.The hood cover is fitted to the endplates on either side of the roller barrel which the curtain rolls around.

Domestic electric roller garage door for domestic use.
Simple locking strap for holding curtain closed.

The GDO ROLL 55 is constructed from high quality 55mm deep double skinned aluminium slats with a foam filled core. It is a made to measure, 240V, tube motor operated, electric roller garage door, manufactured to the exact millimetre in width and height.

The door is electrically remote operated as standard and incorporates an internal emergency manual release in case of a power failure. This is a winding process using a winding handle provided attaching via a hook to the eye of the motor drive. This can be specified as either on the left or right as viewed from inside the garage.

The door is supplied with 2 remote handsets and an internal wall mounted control panel with inbuilt receiver for the remote controls.  The Genesis wall mounted control system dimensions are 140mm h x 120mm w x 50mm d.

The bottom slat is extruded and supplied fitted with a rubber seal system incorporating an infra red beam internally. Any obstacle is detected when the door is operating and the door will instantly stop to prevent damage or injury.

The curtain of this door rolls around a steel barrel which is supported either side by steel endplates which have a dimension of 205mm x 205mm, which is the headroom required if you wish to hide the roll. Always allow for a maximum 50mm of curtain ‘hang down’ when the door is opened if the opening height is critical to you. This is the same on all roller garage doors.

The guide height as used for ordering does not included the endplate size above it and the loss of drive through height with the bottom slat hang down when open.

Door guides either side are 60mm wide and 34mm deep and the door is ordered using the ‘OVERGUIDE’ width from the curtain and guides combined.  These newly updated guides feature brush seals making the door quieter and improve the seal against the weather.

The door can be fitted BEHIND or INBETWEEN the structural opening as required but always check you have order the correct dimensions to take into account the guides and endplates (full hood cover if ordered is the same dimensions).

 Fitting Position
> Between the opening
> Behind the opening
(for maximum width and height). This gives it the freedom to be fitted in the most complex locations regardless of the shape of the garage opening. Single and double garage door sizes are catered for meaning almost all requirements can be met. This makes it highly practical for owners of 4x4 vehicles or similar cars of a large nature who otherwise find problems driving into their garage. This installation style can be used to install the door externally, however, this will cause the motor handing and curtain to be reversed.

Hand crank	Lined guide	ZF Lock	Barrel	safety brake

Installation Instructions are provided with every door.

PLEASE NOTE:  In April 2024 the guides for all GDO Roll 55 doors changed from a previously supplied 66mm guide to 60mm guides. This will affect the ordering size of your door, please contact us if we can help with any clarification on previously quoted doors.

Ordering sizes are the Over Guide Width (OGW) x Guide Height (GH).

Doors have 60mm wide guides*

These measurements are correct for behind fit installations, please contact us for guidance inbetween fit installations.

Clear opening height = guide height - 50mm (to allow for the bottom slat hand-down into the guide). The 205mm endplates incorporating the motor and barrel are to be added onto the guide height to give your total height required (Overall Height)
