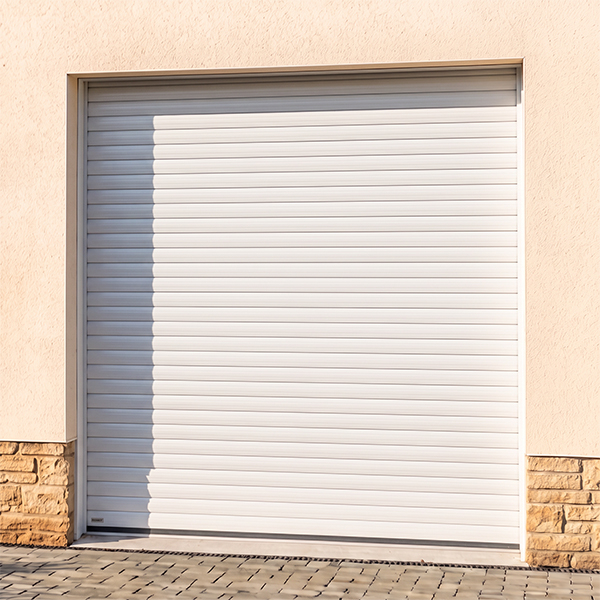

NEW from GDO for 2025, this electric, remote control, aluminium roller garage door is purpose made to the millimetre and supplied as standard with Somfy Rollixo Premium RTS remote control operation, including a built in courtesy light with the wall mounted control panel and control buttons for the door also built in.
There is a built-in alarm system to warn of any attempted forced lifting of the door when closed using the bottom edge sensor as the trigger for any forced attempts at opening the door curtain.
A full hood, aluminium powdercoated cover for the curtain roll is included as standard for maximum protection of the curtain and increased weather and air flow protection.
This is a fantastic specification premium electric remote control roller garage door with high quality components and a 5 year warranty on most components from Somfy.
GDO insulated roller doors are exclusively manufactured in the UK for GarageDoors Online by the leading garage door manufacturer SWS/AlluGuard. Their decades of manufacturing experience ensure only the highest quality materials and production techniques are used, whilst the simplified design helps keep costs as competitive as possible. Fitted with wired optical safety edge as standard.
2 Keygo 4 RTS handsets and an internal premium, wall mounted control panel are standard, along with leading optical safety edge detection for preventing closure onto any obstacles and full compliance with UK regulations on the use of electric operated doors with remote operation.
The Rollixo control panel includes an automatic courtesy light with programmable timings for turning off after automatically coming on when the door operates.
Using 77mm double skinned insulated aluminium slats this roller garage door is strong and offers good insulation properties in the mix too.
Made to measure sizes up to a maximum width of 5200mm including the guides either side.
Maximum height available is 2900mm, plus the height of the roll and endplates which is 300mm, so a total height of 3100mm.
The aluminium side guides are either 70mm or 90mm wide, depending on the door width ordered.
Doors over 3000mm wide will have 90mm guides as standard, so the clear opening width will be 180mm less than the Ordering Width.
The door curtain is available in 18 premium and high quality powdercoated colours with optional half or full hood in a matching colour. If you require a contrasting hood or guides colour please call or email for details and pricing.
The door also has an internal emergency manual winding handle system to operate in the event of a power failure, situated alongside the motor drive, which you can choose the side for operation when ordering. Optional low level external manual override is available if you do not have another access door into your garage.
No Hood, Half Hood or Full Hood?
As standard this door has no hood cover and when fitting fully behind your garage opening you may decide to leave the curtain roll exposed.
Choose an optional half hood cover to provide you with an aluminium fascia if you are installing underneath a lintel or when installing behind a lintel and there is insufficient headroom and you need to cloak the exposed section from outside.
A full hood cover provides the best protection for the curtain rolled up inside your garage and also minimises weather ingress.
External Keyswitch
If you often access your garage from outside or have no pedestrian access to the garage then choose a wall mounted external keyswitch. Simple key operation in either direction with the impulse only for opening. Security keys and steel housing.
Warranty Terms & Conditions
Certificate of Guarantee
1.1. The following guarantees apply to GDO Roll 55 and Roll 77 Electric Button Control roller garage doors, subject to correct installation, maintenance and operation:
1.1.1. GDO Roll 55 and Roll 77 Electric Button Control roller garage doors are guaranteed against defect of material or workmanship by the manufacturer with a parts only warranty for a period of 2 years from the date of original purchase.
1.1.2. GDO Roll 55 and Roll 77 Electric Button Control roller garage doors’ exterior finish is guaranteed to provide an effective weatherproof membrane that will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase.
1.1.3. Externally fitted reverse roll GDO Roll 55 and Roll 77 Electric Button Control roller garage doors will resist perforation of the substrate from the weather side due to corrosion for a period of 2 years from the date of purchase. Colour change or fade to the exterior surface will be limited and uniform during the guarantee.
1.1.4. GDO Roll 55 and Roll 77 Electric Button Control motors and the Genesis, Teleco Simple and C10 control units are guaranteed for a period of 2 years from the date of purchase.
1.1.5. Somfy motors and the Rollixo control unit are guaranteed for a period of 5 years from the date of purchase.
1.2. This guarantee is in addition to your legal rights in addition to the manufacturers products that may be faulty or not as described. Advice about your legal rights is available from your local Citizens’ Advice Bureau or Trading Standards Office.
1.3. The following terms apply to all GDO Roll 55 and Roll 77 Electric Button Control roller garage doors purchased for installation in the UK. The terms shall prevail or be in addition to any agreement between you, the customer, the installer and/or the manufacturer.
1.4. The manufacturer will replace any components of our products sold as GDO Roll 55 and Roll 77 Electric Button Control roller garage doors (‘the Product’) where the manufacturing process has resulted in a defect occurring during the relevant period specified in the Conditions of Guarantee.
Ordering size is the Over Guide Width (OGW) x Guide Height (GH).
Doors up to 3000mm wide have 70mm wide guides
Clear opening width = Ordering size + 140mm*
Doors over 3000mm wide have 90mm wide guides
Clear opening width = Odering size + 180mm*
* These measurements are correct for behind fit installations, please contact us for guidance inbetween fit installations.
Clear opening height = guide height - 50mm (to allow for the bottom slat hand-down into the guide)
Overall Height is the guide height plus the endplate size at 300mm
GDO Roll 77 Remote Control Somfy Optimo (18 Premium Colours)
GDO Roll 77 Remote Control Somfy Optimo (3 Standard Colours)
