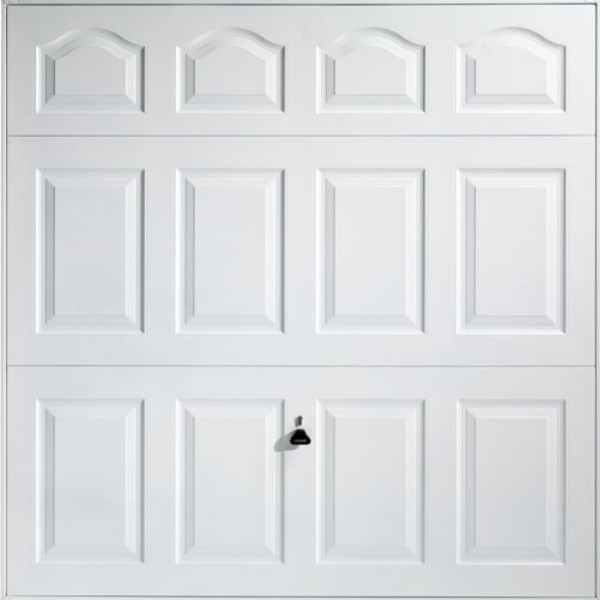

Garador Cathedral (White) Up and Over garage door Steel Garador

The Garador Cathedral steel up and over door benefits:

> Rivet free panel with durable paint finish
> Strong box section chassis and constructed from high grade galvanised steel
> Full range of sizes including doubles and made to measure
> Full technical and warranty support available
> Low maintenance and matches most modern and traditional homes
> Deep, crisp and elegant panel pressing

Factory Fitted Steel Fixing Frame
We highly recommend the Garador steel fixing frame as it offers the tightest tolerance around the edge of the door panel, creating a faster and neater fit compared to a standard timber subframe.

Canopy mechanism with steel frame

Retractable mechanism with steel frame

Choose Handle Option
Choose either a black nylon handle or a high quality diecast metal handle in white, brass or chrome effect.

Extra Security Locking
For manually operated doors we offer the option to upgrade to a 4 point locking rod system for improved security and resistance to forced entry. Combined with a steel sub frame the Garador locking rod system utilises the steel closing lip along with steel plates to prevent easy access to the internal locking catches for the door.

The improved security of a locking latch in each corner protects against forced entry.

Suitable for retractable gear options the electric operated ‘De Latch Security Locking’ system works with the existing manual locking mechanism, and the remote control operator, by connecting with a mechanical latching system to provide 3 point locking security.

The ‘De Latch Security Locking’ system is not suitable for canopy doors.

Emergency External Release
Required for garages without alternative means of access to the garage. This system attaches a cable internally, within the garage, and offers a way to externally disconnect the remote control operator towing arm, perfect in the event of a power failure.

Remote Control Electric Operator
Complete with two hand transmitters the Garamatic 9 electric operator is reliable, secure and offers excellent value for money.  The operator is maintenance free and creates a super smooth and quiet door. Other features include a manual override option, for the event of power failure, an integral LED light with 10 LEDs to combine for low power consumption and it complies with the latest European safety standards. Short K boom is included with this motor, it will be suitable for doors up to 2500mm high.

Please note that the Retractable doors do not have a back brace.

Garador steel up and over doors use a high quality powder or foil coated finish in RAL 9016 White.

White (RAL 9016) doors are supplied unwrapped as standard.

The Garador Up and Over Doors are fitted as standard with secure 2-point locking to prevent unauthorised entry.

Optional 4-point locking kit is provided (with a surcharge) for extra peace of mind:
Additional security kit comprising steel locking bar rods and slam-shut latches to increase the number of locking points from two to four.

De-Latch Security Locking Kit
When an electric operator is fitted the garage door only locks on the operator – the door is not locked on the locking catches fitted to the door. A delatch kit will engage the locking catches on the garage door as well providing a further level of security

Anti-drop device:
To prevent the door from crashing down in the event of a spring or cable failure.

Zinc-coated torsion spring:
For durability and a clean, finished look.

Canopy Gear - The canopy gear allows the door to travel in vertical tracks and is counterbalanced by an overhead torsion spring.
The nominal drive through clearance is 40mm less than the opening width and 130mm less than the opening height.
In the open position, the door projects approximately one third of the door height, forming a canopy.

Single canopy doors come complete with:
> Anti drop device to prevent the door from crashing down in the event of a spring or cable failure.
> Zinc coated torsion spring for durability and a clean finished look.
> Cast alloy drum
> 2-Point Locking to prevent unauthorised entry.
> Design handle for safe door operation.

Single canopy door mechanism is contained within the door frame with no horizontal tracks protruding into the garage space. When opened, the door forms a 'canopy' with roughly one third of the door outside the garage.

Retractable Gear - The retractable gear allows the door to be retracted inside the garage when open by means of horizontal overhead tracks supported by wall or ceiling mounted suspension brackets. This gear is available as an option for single doors and comes as standard with double garage doors.
The nominal drive through clearance is 105mm less than the opening width and 110mm less than the opening height for single doors and 140mm less than the opening height for double doors.

Single retractable doors come complete with:
> Multiple spring cassette and pivot arm cover providing trap protection to reduce the risk of injuries.
> Secure parking position to prevent the door from uncontrolled closing.
> Design handle for safe door operation.
> Secure locking to prevent from forced entry.

Single retractable doors open along the horizontal tracks inside the garage and travel back into the garage space when opened. Retractable garage doors are ideal for automation.

Optional Retractable Plus Gear - available on 1931mm, 1981mm and 2136mm high doors and up to 2284mm wide.
Retractable Plus Gear is an optional extra for garages that have narrow openings, they have specially designed lifting arms and bottom spring brackets to allow for maximum use of the clear passage.

Retractable Plus Gear is not available for doors over 7'6" wide

Installation Instructions are provided with every door.

Warranty

Timber doors: 2 years. Warranty is granted on the door panels alone under the terms and conditions specified herein. The door mechanism and steel frame (if applicable) is covered by the 10 year warranty period. Replacement Parts: 6 months.

GRP Doors: 2-year Warranty on the door panels. 10-year Warranty on the door mechanism and steel frame.

Steel Doors: 10-year Warranty. Replacement Parts: 6 months.

The Warranty does not cover damage caused through:

> Normal wear and tear

> Improper installation

> Negligent care and maintenance

> Improper initial and subsequent operation

> Negligent or wanton destruction

> External influences such as fire, water, salts, alkaline solutions, acids, abnormal environmental influences

> Mechanical damage through improper transport and fitting

> Priming and other surface protection treatments

> Repair by non-qualified persons

> Using non-Garador parts without the approval of the Manufacturer

> Remove of the product number or making it unidentifiable

Garador Up and Over Service and Support: Information on operation, maintenance and cleaning of your garage door.
