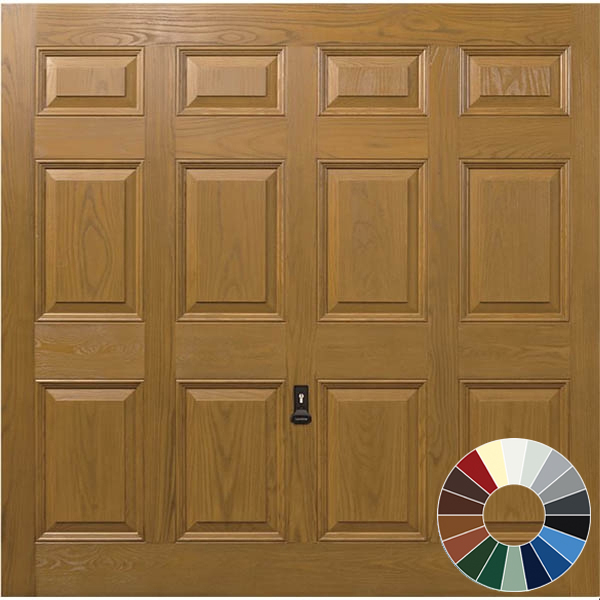

Garador Kenmore (18 Colour Options) Up and Over garage door Composite GRP Garador

These doors are available in woodgrain finish and are virtually maintenance free.

Door finishes:
White
Dark Oak
Dark Mahogany
Blue
Ebony
Irish Oak
Rosewood
Green
Red
Red Mahogany
Gloss Magnolia
Bleached Oak
Honey Beech
Anthracite Grey
Golden Brown
Magnolia
Teak
Light Oak

Due to the production processes door colours may vary. Should you require matching doors then please specify on the order.

Chassis colour - Traffic White (RAL 9016) for Gloss White Doors, Black (RAL 9005) for Ebony coloured doors and Brown (RAL 8028) for all other timber effect GRP doors. We also offer an Anthracite chassis (RAL 7016) to match Anthracite Grey GRP door colours (please specify on the order).

The doors are made as an infill and then fixed into rigid box section chassis to provide a very stable door construction that will not twist or warp.

They are provided as standard with a flow-coat to the inside face for a smoother finish and reduced translucency.

Please Note: Panel doors are produced with appearance in mind. This may result in some small gaps which could allow water ingress especially in exposed locations.

Factory Fitted Steel Fixing Frame

We highly recommend the Garador steel fixing frame as it offers the tightest tolerance around the edge of the door panel, creating a faster and neater fit compared to a standard timber subframe.

Canopy mechanism with steel frame

Retractable mechanism with steel frame

Choose Handle Option
Choose either a black nylon handle or a high quality diecast metal handle in white, brass or chrome effect.

Extra Security Locking
For manually operated doors we offer the option to upgrade to a 4 point locking rod system for improved security and resistance to forced entry. Combined with a steel sub frame the Garador locking rod system utilises the steel closing lip along with steel plates to prevent easy access to the internal locking catches for the door.

The improved security of a locking latch in each corner protects against forced entry.

Suitable for retractable gear options the electric operated ‘De Latch Security Locking’ system works with the existing manual locking mechanism, and the remote control operator, by connecting with a mechanical latching system to provide 3 point locking security.

The ‘De Latch Security Locking’ system is not suitable for canopy doors.

Emergency External Release
Required for garages without alternative means of access to the garage. This system attaches a cable internally, within the garage, and offers a way to externally disconnect the remote control operator towing arm, perfect in the event of a power failure.

Remote Control Electric Operator
Complete with two hand transmitters the Garamatic 9 electric operator is reliable, secure and offers excellent value for money.  The operator is maintenance free and creates a super smooth and quiet door. Other features include a manual override option, for the event of power failure, an integral LED light with 10 LEDs to combine for low power consumption and it complies with the latest European safety standards. Short K boom is included with this motor, it will be suitable for doors up to 2500mm high.

De-Latch Security Locking Kit
When an electric operator is fitted the garage door only locks on the operator – the door is not locked on the locking catches fitted to the door. A delatch kit will engage the locking catches on the garage door as well providing a further level of security

Canopy Gear - The canopy gear allows the door to travel in vertical tracks and is counterbalanced by an overhead torsion spring.

The nominal drive through clearance is 40mm less than the opening width and 130mm less than the opening height.

In the open position, the door projects approximately one third of the door height, forming a canopy.

Retractable Gear - Please note that the Retractable doors do not have a back brace.

The retractable gear allows the door to be retracted inside the garage when open by means of horizontal overhead tracks supported by wall or ceiling mounted suspension brackets. This gear is available as an option for single doors and comes as standard with double garage doors.

Optional Retractable Plus Gear - available on 1931mm, 1981mm and 2136mm high doors and up to 2284mm wide.
Retractable Plus Gear is an optional extra for garages that have narrow openings, they have specially designed lifting arms and bottom spring brackets to allow for maximum use of the clear passage.

The nominal drive through clearance is 105mm less than the opening width and 110mm less than the opening height for single doors and 140mm less than the opening height for double doors.

Window Options:

Clear Perspex
Stippled Perspex
Stippled Persepx with diamond leading
Stippled Perspex with square leading
Black non-translucent
Black non-translucent Perspex with border and diamond leading

Doors with windows may have cross bracing or locking rods passing behind the windows depending upon size and gear type.

Please Note:
The Frame Options are as follows: -
For all GRP White Gloss Doors a White Frame RAL 9016 will be as standard. Ebony Doors will have a Black Frame RAL 9005 as standard and any other coloured doors will have a Brown RAL 8028 Frame as standard. Garador do not offer frames to match door colour.

Installation Instructions are provided with every door.

Warranty

Timber doors: 2 years. Warranty is granted on the door panels alone under the terms and conditions specified herein. The door mechanism and steel frame (if applicable) is covered by the 10 year warranty period. Replacement Parts: 6 months.

GRP Doors: 2-year Warranty on the door panels. 10-year Warranty on the door mechanism and steel frame.

Steel Doors: 10-year Warranty. Replacement Parts: 6 months.

The Warranty does not cover damage caused through:

> Normal wear and tear

> Improper installation

> Negligent care and maintenance

> Improper initial and subsequent operation

> Negligent or wanton destruction

> External influences such as fire, water, salts, alkaline solutions, acids, abnormal environmental influences

> Mechanical damage through improper transport and fitting

> Priming and other surface protection treatments

> Repair by non-qualified persons

> Using non-Garador parts without the approval of the Manufacturer

> Remove of the product number or making it unidentifiable

Garador Up and Over Service and Support: Information on operation, maintenance and cleaning of your garage door.

 *No fitting clearance allowed. If door is fitted between the brickwork a minimum of 10mm clearance over the width and 5mm over the height should be added to the overall frame size when selecting the door.
