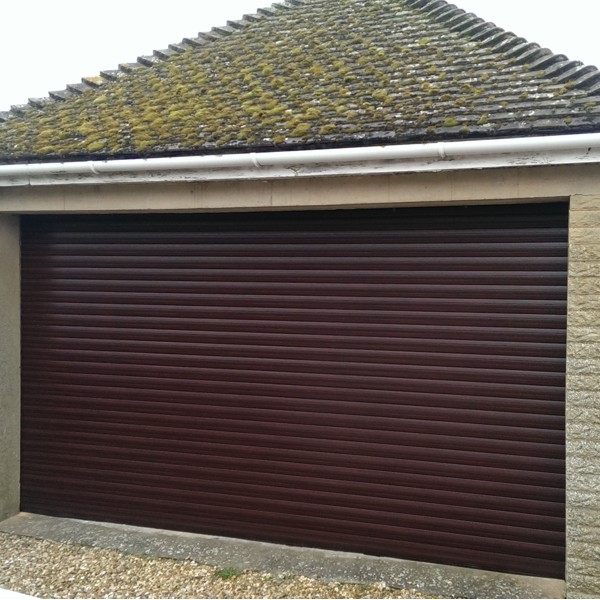

Gliderol Roller Door with Full Hood Laminate Woodgrain Finish (7 Colour Options) Insulated Roller door garage door Aluminium Gliderol

Gliderol Roll-A-Glide insulated doors have 75mm interlocking twin walled aluminium sections containing CFC-free insulating foam, providing the door with strength and durability.

If it is space you need the Gliderol Roll-A-Glide is the ideal door:
The roller door opens vertically so you can park your car right up to the garage if you have a short driveway.
You can also maximise space inside your garage as the door rolls up tightly and neatly above the lintel, allowing you to utilise all the roof space in your garage and also maximise drive through height for taller vehicles.

Gliderol doors are ideal for all shapes and sizes and can be fitted:
> Between the opening
> Behind the opening (for maximum width and height). This gives it the freedom to be fitted in the most complex locations regardless of the shape of the garage opening. Single and double garage door sizes are catered for meaning almost all requirements can be met. This makes it highly practical for owners of 4x4 vehicles or similar cars of a large nature who otherwise find problems driving into their garage. This installation style can be used to install the door externally, however, this will cause the curtain to be reversed.

Domestic garages with medium to low useage.

Automation
The Gliderol Roll-A-Glide door is supplied as standard with a Gliderol Roll Smart system.
> Remote control operation
> Handsets supplied are pre-coded, no need to pair the handsets for easy set up
> Virtually silent and exceptionally smooth
> Rolling code technology ensures that security is paramount with a unique code generated each time the handset is activated.

Motors can be fitted on the left or right hand side (as viewed from inside the garage looking out).

Manual Override
In the event of a power failure a manual winding handle ensures the door can be opened from inside the garage. An external manual release is available as an optional extra. This manual release is compulsory for garages where an alternative entrance is not available unless there is a battery back-up installed.

Optional Extras
External Manual Release - required if there is no other means of access to the garage.
Handset - additional handsets are available (2 are supplied as standard).
Wireless Key Switch - Externally mounted security switch with three keys.
Wireless Key Pad - available in standard and anti-vandal providing versatility for location.
Electric photo cell - type D safety device in accordance with BS EN 12453. If the door detects an obstruction in the doors path, the door will stop, reverse momentarily and then stop again.

Safety
All Gliderol Roll-A-Glide doors are fitted with:
> A bottom rail safety
> Anti drop device
> Internal manual release
The door is also equipped with an auto reverse safety mechanism. In the case of an obstruction in the doors path, the door will stop, reverse momentarily and then stop again.

Laminate Woodgrain Finishes available: -
Golden Oak
Rosewood
Irish Oak
Mahogany
Irish Oak
White
Black
Anthracite

Please Note: Guides will be supplied in Van Dyke Brown only. Colour match is not available for Laminate Finishes.

It is possible that some of the bottom rail will be visible below the top of the opening when the door is in the open position.

A Note Concerning Colours: Door guides are available in colours matching the door curtain except laminate door colours (supplied in brown). Coloured guide rails are supplied as standard, however they may not exactly match the lath colour. The manufacturing process for the lath profile results in a textured finish, whilst all other coloured items (guides, bottom laths, lock laths, optional fascias and vision panels) are supplied in a satin finish so cannot be guaranteed to match exactly.

Fitting Position
> Between the opening
> Behind the opening (for maximum width and height). This gives it the freedom to be fitted in the most complex locations regardless of the shape of the garage opening. Single and double garage door sizes are catered for meaning almost all requirements can be met. This makes it highly practical for owners of 4x4 vehicles or similar cars of a large nature who otherwise find problems driving into their garage. This installation style can be used to install the door externally, however, this will cause the motor handing and curtain to be reversed.

Warranty

• Domestic/Residential use - 10 years corrosion free on door panel excludes paint surface rubbing or fading. (Mini Roller door has 1 year total warranty cover).
1 year on the lock and face plate, spring, bottom roller, weatherseal and polyglide, if fitted by an authorised Gliderol Distributor or Gliderol Technician.
3 month warranty on spring tension.
• Industrial/Commercial use - 1 year on the lock and face plate, spring, bottom roller, weatherseal and polyglide, if fitted by an authorised Gliderol Distributor or Gliderol Technician. 3 month warranty on spring tension.
The manufacturer strongly recommends that all Gliderol products be serviced by an authorised Gliderol Distributor or Gliderol Technician every 12 months to ensure longevity of the products’ life. Failure to do this may result in any warranty being invalid.
Warranties of 5 years electrical, 2 years tubular motors, 5 years mechanical and 10 years paint finish apply to all Gliderol doors (except Mini Roller Doors see above).
Garage doors should be inspected upon installation and viewed in natural daylight (not direct sunlight) from a standard distance of 3 metres to view their overall appearance. From this distance the door panel should appear free from visible marks or distortion, stains, blemishes, indentations or scuffs.
Only marks visible from a distance of more than 3 metres will be considered under warranty.

PRODUCT WARRANTY CONDITIONS
Warranty Conditions

1. Subject to the under mentioned specific limitations and exceptions, the Manufacturer warrants all new doors, motors and electronic components of its
manufacture to be free from defect in workmanship under normal use and service and further warrants all installation carried out by the Manufacturer or by its nominated installers to be free from defects and workmanship its obligations hereunder being limited to making good any such defect PROVIDED THAT notice of any claimed defect in material workmanship in or resulting from installation of any door shall have been given to the Manufacturer within the period from date of installation as prescribed in the schedule hereto.
2. This warranty does not apply to any defect, loss or damage arising or caused directly or indirectly by or as a result of;
(i) Any masonry rendered or other surfaces cracking or collapsing during installation of the door.
(ii) Any defect or deterioration of timber including drying out after installation.
(iii) Any weakening or collapse of the structure to which the doors are affixed occurring any time after installation.
(iv) Any damage to or deterioration in the condition of the doors occurring in transit by customer nominated or appointed carrier or occurring after delivery and prior to installation.
(v) Any defect (including defects in component parts or accessories) rising from or attributable to the failure to carry out normal preventive maintenance or adjustment.
(vi) To any additional defect damage or deterioration arising from or attributable to the operation of the door after it is known to be defective.
(vii) Any door being installed within 800 metres of the sea or other body of water of equivalent or greater salt concentration or in an area subject to industrial fall out.
(viii) Any fault or surge in customer’s electricity supply.
(x) The door striking an immovable object during travel.
(xi) Garage doors should be inspected upon delivery and viewed in natural light (not direct sunlight) from a standard distance of 3 metres to view their overall appearance. From this distance the door panel should appear free from marks or distortion, stains, blemishes, indentations or scuffs. If any marks are only visible within 3 metres they will not be considered under warranty.
3. Items excluded from warranty;
(i) Batteries
(ii) Fuses
(iii) Globes
(iv) Sensitivity adjustments
(iiv) Minor factory repairs
4. While Gliderol doors are long lasting and hard wearing under normal conditions this warranty does not extend to inherent defects in steel or other material used in the manufacture. The Manufacturer will however, procure and assign to the customer the benefit of the warranty of the manufacturer of the steel or other material.
5. If Manufacturer has at request of customer procured painting, powder-coating or other surface application to its product this warranty does not extend to such painting, powder-coating or other surface application. For this purpose Manufacturer at all times acts as agent of customer. Manufacturer may as a
service to the customer but without any legal obligation to do so, assist customer to obtain redress in respect of any defect.
6. The Manufacturer reserves the right to touch up on site the paint finish and or pre-painted surfaces on its range of garage doors but no responsibility will be taken for the possibility of any paint rubs, scuffing etc on the internal wash coat finish or external painted surface.
7. Proof of purchase MUST be provided to the manufacturer at time of warranty claim. If proof is not available any warranty may be invalid.

All Gliderol roller doors are ordered using the overall guide width and the opening height of the guides.

Gliderol doors are supplied with 300mm endplates.
360mm endplates are supplied on doors over 3000mm high, regardless of the height.

70mm or 90mm Guides:
All Roll-a-Glide doors are ordered using the guide height and the over guide width. The OGW is the opening width plus 180mm / 140mm (width of the guides = 2 x 90mm / 70mm).

Please Note:
Under 3500mm wide = 70mm Guides will be supplied.
3500mm wide and Over = 90mm Guides will be supplied.

If fitting between the opening the overall width of the door should be the narrowest measurement between the opening.
